Baynton

3 2 1

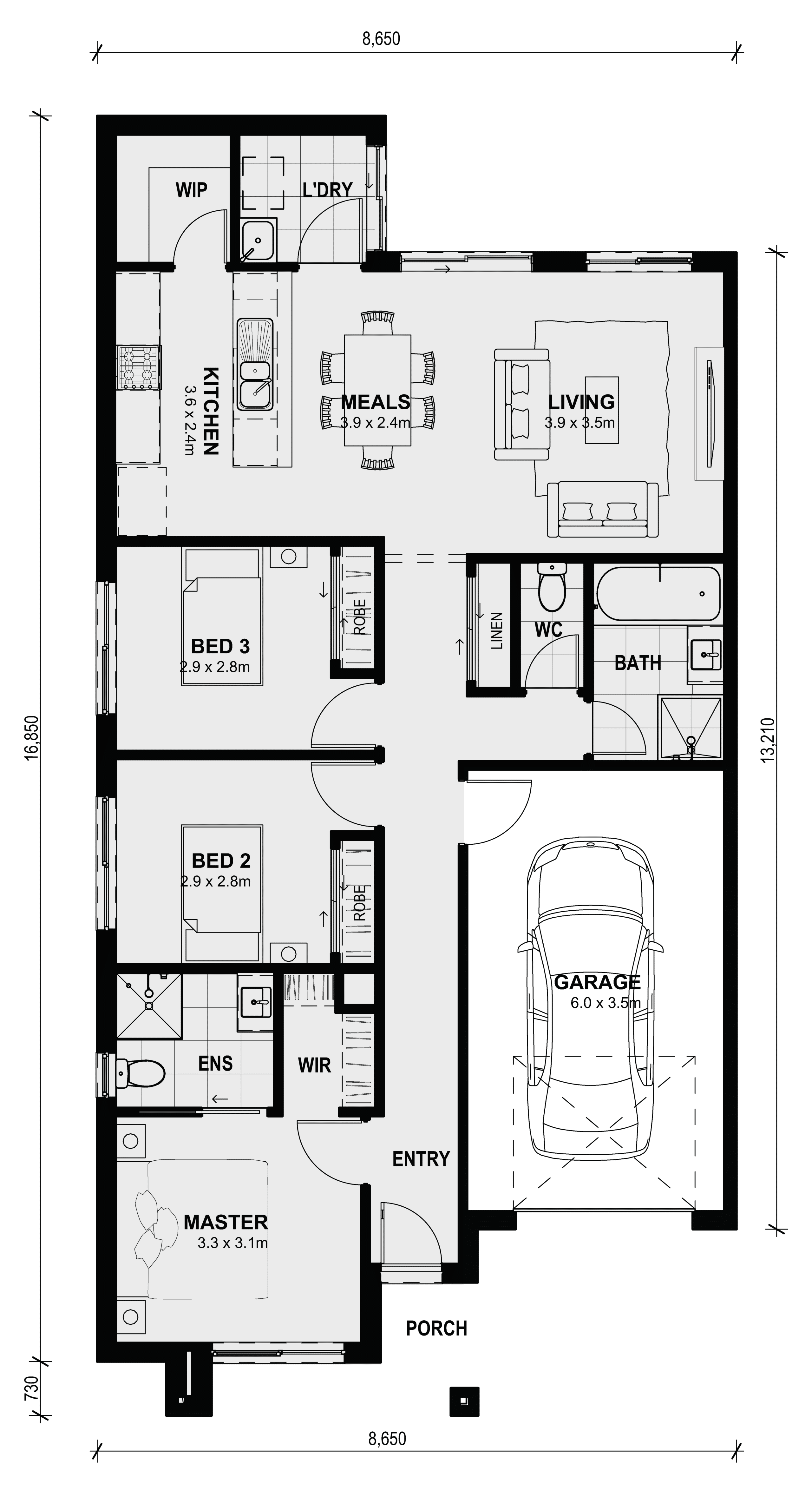

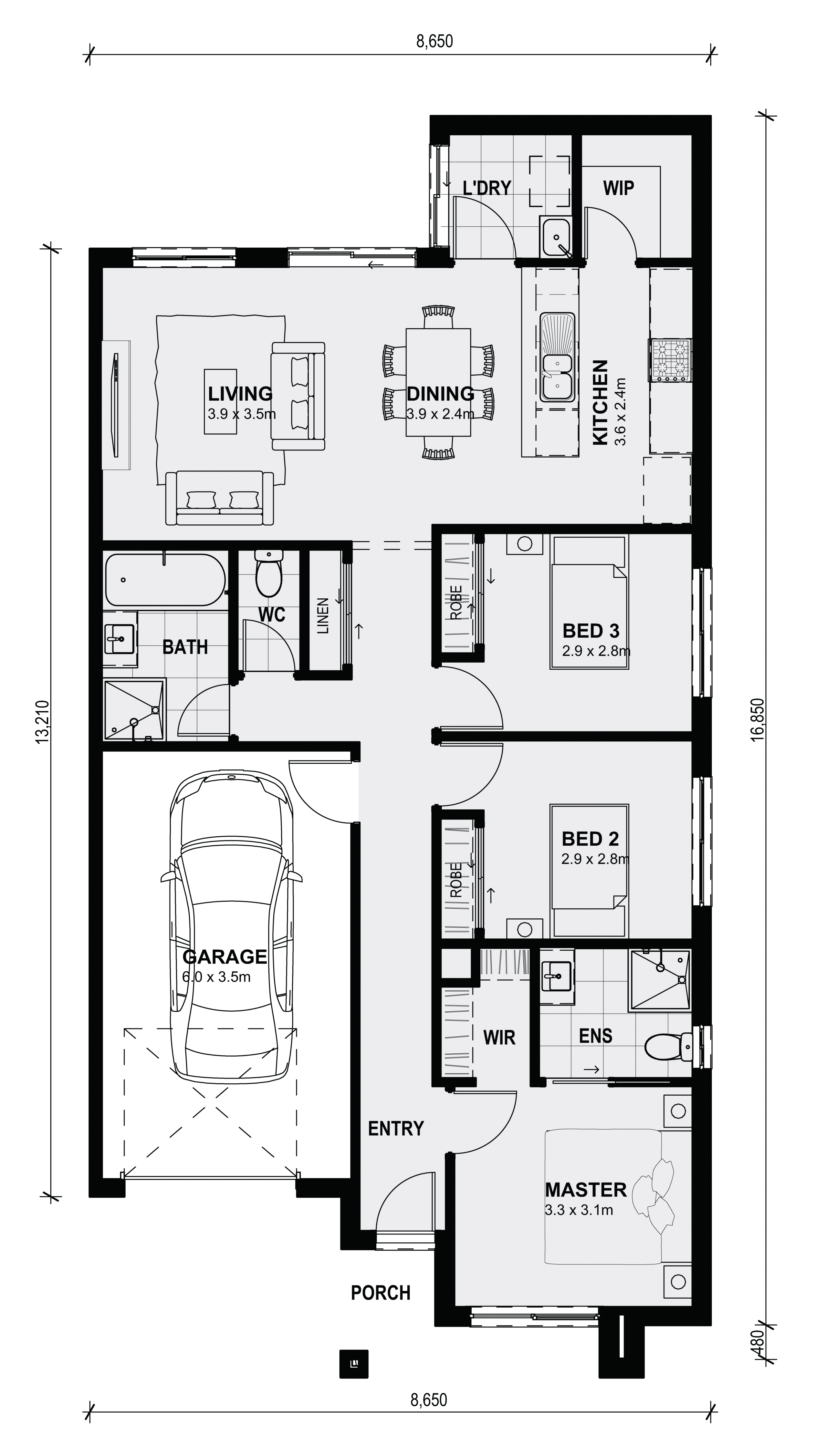

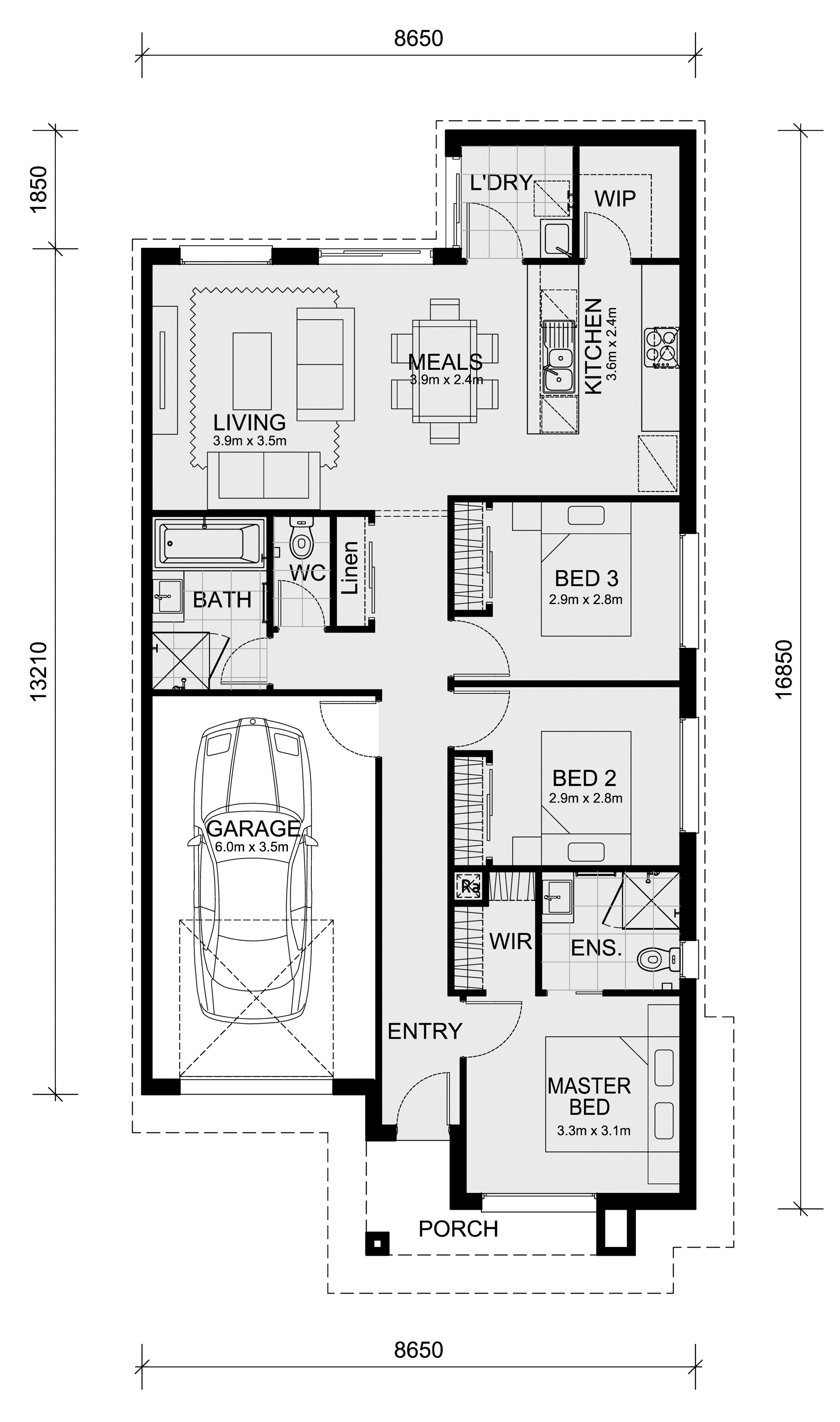

The Baynton 143 combines designer allure and practicality to create a perfect haven for the modern family.

Boasting a large master bedroom with walk-in wardrobe and ensuite located at the front of the home, internal access from the garage, two spacious bedrooms, separate w.c and an open kitchen, meals and living area, finishes off this simple, yet practical design.

Choose Floorplan Design:

143
Minimum Frontage

10.0 m

Min Depth

21m

Total Area

14.39sq

Area Analysis
Living Area
105.6 sqm | 11.4 sq
Garage Area
23.7 sqm | 2.6 sq
Porch Area
4.5 sqm | 0.5 sq
zoom out
zoom in
reset
flip
  • STRUCTURAL FOUNDATIONS
    INTERNAL DETAILING
    ELECTRICAL & 7 STAR
    STAIRCASE (DOUBLE STOREY)
    KITCHEN & LAUNDRY
    BATHROOM & ENSUITE
    STRUCTURAL FOUNDATIONS

    SLAB / FOUNDATIONS

    – ‘H1’ Class Engineered designed waffle pod slab (excluding alfresco and porch) with pad footings for piers.
    – Includes SL82 fabric mesh, N12 bars & 3-L12 trench mesh with 385mm overall slab height.

    SITE EXCAVATION

    – Excavation and soil removal with an allowance for 300mm fill, 300 mm fall on building perimeter with a balance cut and fill.

    COUNCIL & OH&S REQUIREMENTS

    – OH&S requirements and certifications
    – Crossover Protection & Silt Sediment control where applicable
    – Temporary Site fencing & rubbish cage
    – Warranty Insurance
    – Occupancy Certificate

    CONNECTIONS

    – Includes connection of water, gas, electricity (single phase), sewer, stormwater points within the allotment
    – Includes conduit for fibre optic run-in from pit to side of dwelling (Single Storey)
    – Does not include electricity and telephone connection cost, or account opening fees and usage charges.
    – 1 x external water tap to rear in addition to mains metered water tap

    WARRANTIES & GUARANTEES

    – 7 year structural guarantee
    – All statutory warranties, insurances and guarantees
    – 6 month maintenance period
    – Independent inspections by registered building surveyor
    – Termite protection (If required)

    FRAME

    – MGP 10 pine 90mm wall frames and engineered designed roof trusses

    EXTERNAL CLADDING (SINGLE STOREY)

    – Bricks hand selected by our team of expert interior designers (Refer to chosen colour scheme)
    – Brick infills above windows to front Elevation (design specific)
    – Feature render to facade (One colour, product specific)
    – 4.5mm fibre cement sheet infills above windows to side and rear elevations, sliding door & garage opening (refer to working drawings)
    – Natural colour rolled mortar joints to brickwork
    – Autoclaved aerated concrete(AAC) panels to whole house with render finish. (One colour – AAC design specific)

    EXTERNAL CLADDING (DOUBLE STOREY)

    – Autoclaved aerated concrete panels (AAC) with render finish
    – Feature render to façade (Two colour – product specific, refer to chosen colour scheme)

    ROOFING MATERIAL

    – Roof made from Colorbond® steel, or concrete roof tiles, colour hand selected by our team of expert interior designers (Single Storey)
    – 22.5 degree roof pitch
    – Roof made from Colorbond® steel (Double Storey)

    GUTTER / FASCIA / DOWNPIPES

    – Colorbond® gutter, fascia & downpipes

    WINDOWS

    – Powder coated aluminium double glazed awning feature windows to front elevation (facade specific)
    – Powder coated aluminium double glazed awning windows to remainder of home (design specific)                                                                                                                                          – Powder coated aluminium single glazed sliding doors
    – Keyed window locks to all openable windows

    FRONT DOOR

    – Feature painted front entry door.
    – Round keyed Terrace set to front entry door

    GARAGE

    – Colorbond® sectional panel (slimline) garage door with handle to lift up (Single Storey)
    – Colorbond sectional panel (flat line) garage door with handle to lift up (Double Storey)
    – Concrete floor line
    – Painted cement sheet infill above garage door opening (refer to working drawings)
    – Weatherproof hinged flush panel rear access door with aluminium door frame (If applicable)                                                                                                                                                  – Ramp between house/ & garage entry to comply with National Construction Code 2022

    EXTERNAL PAINTWORK

    – Low sheen acrylic paint to all external surfaces                                                                                                                                                                                                                                      – Semi-Gloss enamel paint to front entry door
    – Flat matt paint to ceiling of alfresco, porch, and eaves (If Applicable – Single Storey)
    – Flatt matt paint to ceiling of alfresco, porch, balcony and eaves (If Applicable – Double Storey)

    INTERNAL DETAILING

    SKIRTING / ARCHITRAVES

    – 67mm x 12mm primed single bevel skirtings.
    – 67mm x 12mm primed single bevel architraves.

    CORNICE

    – 75mm cove cornice.

    CEILING HEIGHT

    – 2440mm ceiling height (Single Storey)
    – 2590mm ceiling height to ground and 2440mm to first floor per standard plans (Double Storey)

    INTERNAL PAINTWORK

    – 2 coat paint system.
    – Flat acrylic paint to ceilings. (2 coat)
    – Matt washable acrylic paint to internal wall (2 coat)
    – 1 coat Elite Tricoat primer sealer and 2 coat Acrylic enamel ultratrim gloss to all internal woodwork and doors

    WALL & FLOOR TILES

    – Ceramic wall tiles to wet areas and kitchen splashback only (Refer to working drawings & chosen colour schemes)
    – Ceramic floor tiles to bathroom, ensuite, WC & laundry (Refer to working drawings & chosen colour schemes)
    – 100mm high skirting tiles to bathroom, ensuites, WC & laundry

    INTERNAL DOORS

    – 2040mm high x 620mm – 870mm wide flush panel hinged doors with chrome lever door furniture or cavity sliding doors with flush pull door furniture (design specific)
    – Privacy door handles to bathroom, WC (main) & master bedroom
    – Air cushion door stops

    ROBES

    – Melamine single shelving throughout with metal hanging rail & quick slider doors (Design Specific)

    ELECTRICAL & 7 STAR

    INTERNAL POWERPOINTS

    – Double/Single powerpoints throughout as per electrical plan.

    LIGHTING

    – Internal: Batten holders with cowl shades throughout and energy efficient globes

    TV POINT

    – 1 x TV point including 5m of coaxial cable to roof space

    EXHAUST FANS

    – Self-sealing exhaust fans as per working drawings – vented externally where applicable or interlocked fan with delayed timer (design specific)

    SMOKE DETECTORS

    – 240v Hardwired with battery backup.

    SAFETY SWITCH

    – RCD safety switch and circuit breakers.

    HEATING

    – 3 star gas ducted heating unit installed in roof space
    – Ducted to all living areas and bedrooms

    INSULATION

    – Insulation batts to ceiling to achieve 7 star energy rating (standard design)
    – Class 4 vapour permeance barrier wall wrap & polyester batts to all external walls of house & common wall between garage & house

    ENERGY & WHOLE OF HOME ASSESSMENT

    – Independent 7 star energy report obtained for every individual home                                                                                                                                                                                              – Solar PV System 3.52kw Photovoltaic solar system (battery ready) installed as per manufacturers recommendation including location

    STAIRCASE (DOUBLE STOREY)

    – 32mm MDF treads and stringers
    – 18mm MDF for landings and risers
    – Pine handrails, balusters and newel posts (All painted, design specific)

    KITCHEN & LAUNDRY

    KITCHEN JOINERY

    – Laminated cabinets and white melamine finish to all internal surfaces

    HANDLES

    – Designer handle selected by our expert interior designers

    BENCHTOP

    – 32mm laminated benchtop with square edge finish

    OVEN COOKTOP

    – 600mm built in oven & cooktop

    RANGEHOOD

    – 600mm canopy rangehood ducted externally

    DISHWASHER

    – Provision with single power point and water connections

    KITCHEN SINK

    – 1 3⁄4 stainless steel sink with side drainer and basket waste

    KITCHEN TAP

    – Designer sink mixer with chrome finish

    LAUNDRY TROUGH

    – Powder coated steel cabinet with 45 litre stainless steel trough & sink mixer
    – Wall mounted washing machine stops

    BATHROOM & ENSUITE

    BATHROOM JOINERY

    – Laminated cabinets carefully selected by our expert interior designers

    BENCHTOP

    – 19mm laminated benchtop

    VANITY BASIN

    – Designer basin carefully selected by our expert interior designers

    TAPWARE

    – Designer flick mixer to basins carefully selected by our expert interior designers

    SHOWER

    – Recessed tiled shower base to one shower predetermined to comply with National Construction Code 2022                                                                                                                          – Durable shower base to remaining showers (design specific)

    – Polished silver frame shower screen with pivot door and clear laminated glass (No bottom rail to compliant shower door as per National Construction Code 2022

    – Designer hand held flick mixer & adjustable shower rose on arm

    BATH

    – 1700mm designer white bathtub

    BATH TAPS

    – Flick mixer with wall mounted spout

    TOILET & W.C

    – White toilet suite with concealed waste and dual flush cistern

    MIRRORS

    – Polished edge mirrors to full width of vanity

    DISCLAIMER: Mimosa Homes reserves the right to change or substitute suppliers, model &/or type of any product of equal quality without notice. The standard inclusions relate to our base house price and specific house upgrades may incur additional costs. Please ask your sales consultant for further information. This documentation prepared 1st May 2024

    Colour Schemes

    View and compare our carefully selected colour schemes

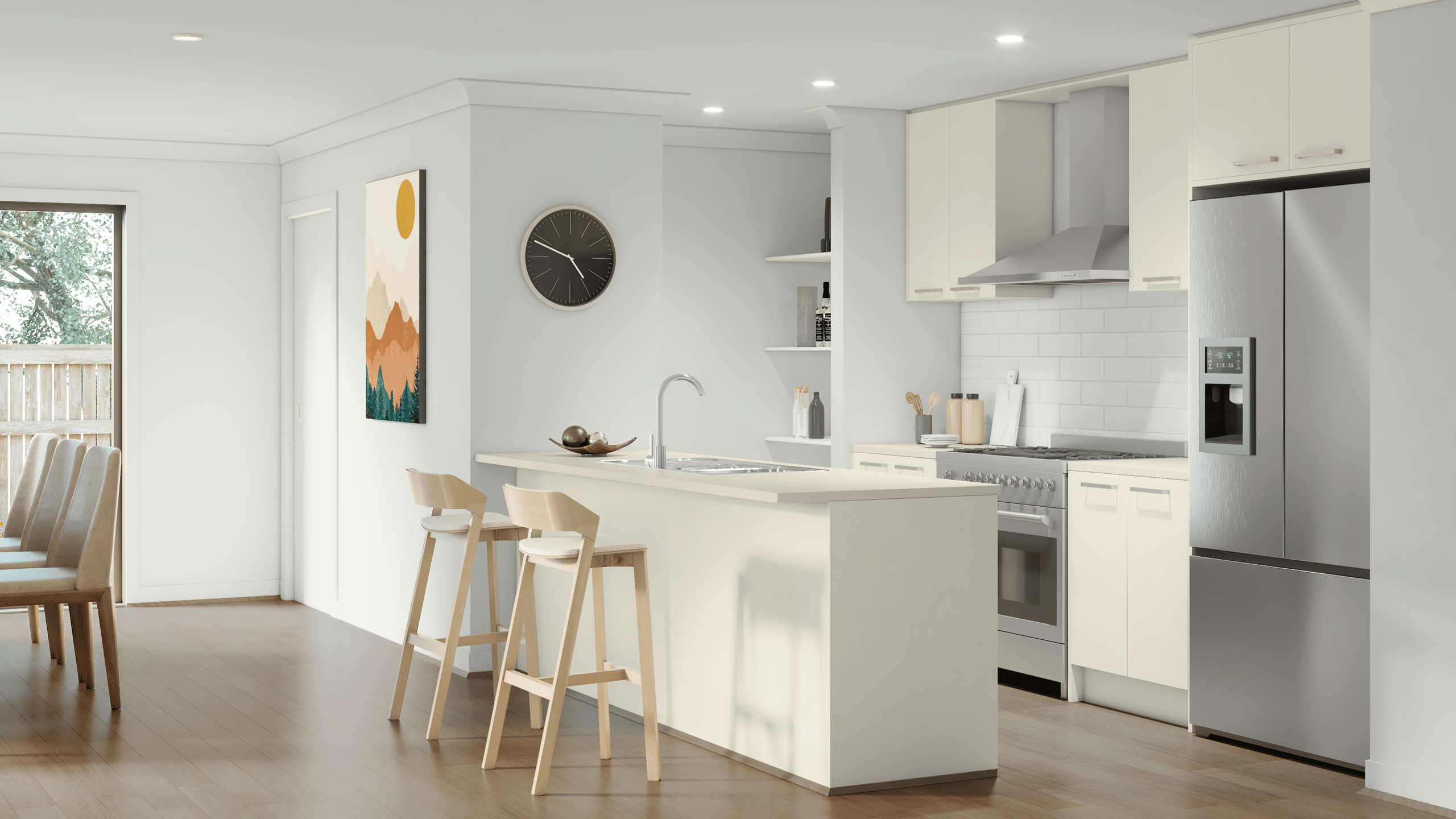

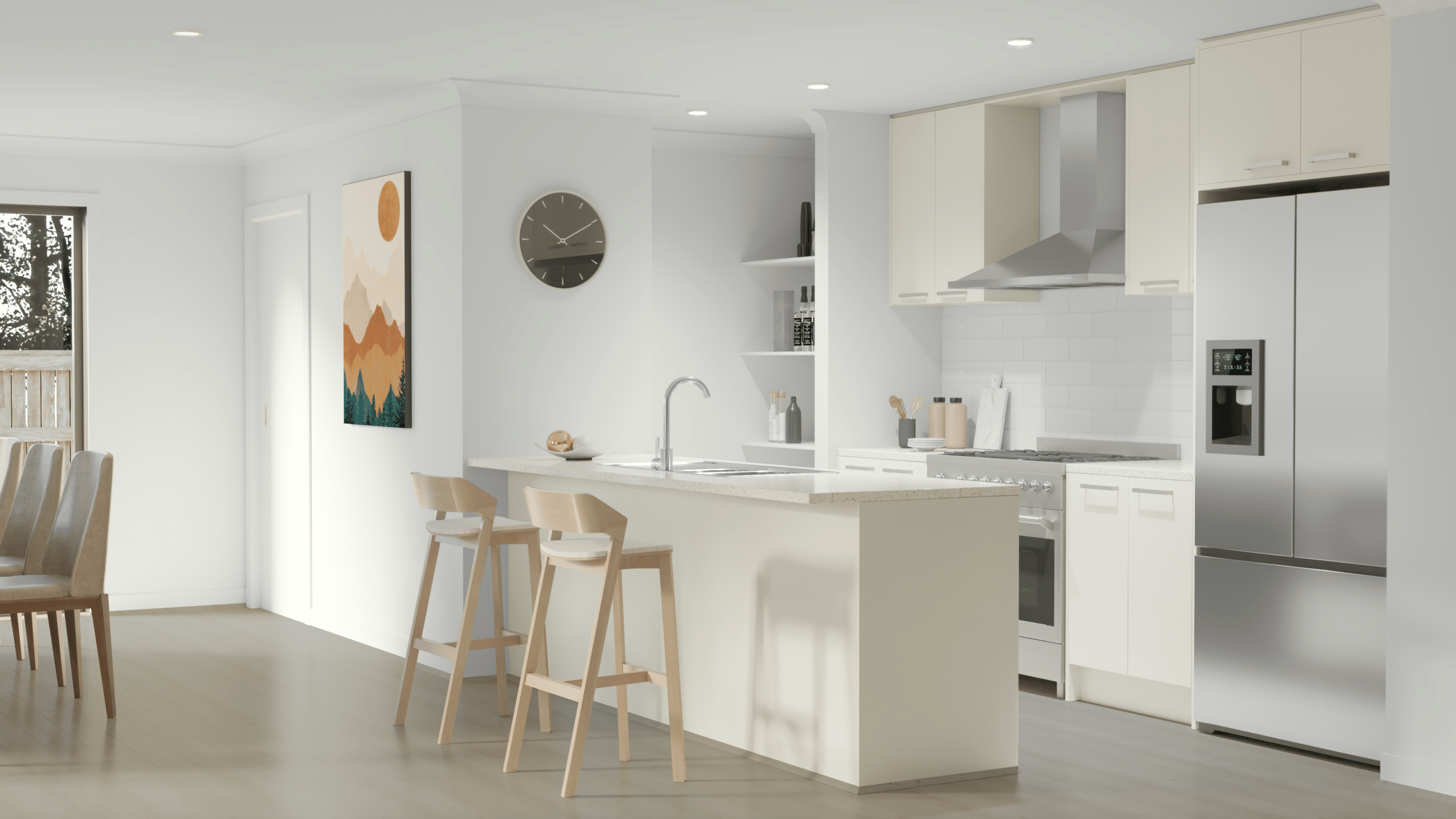

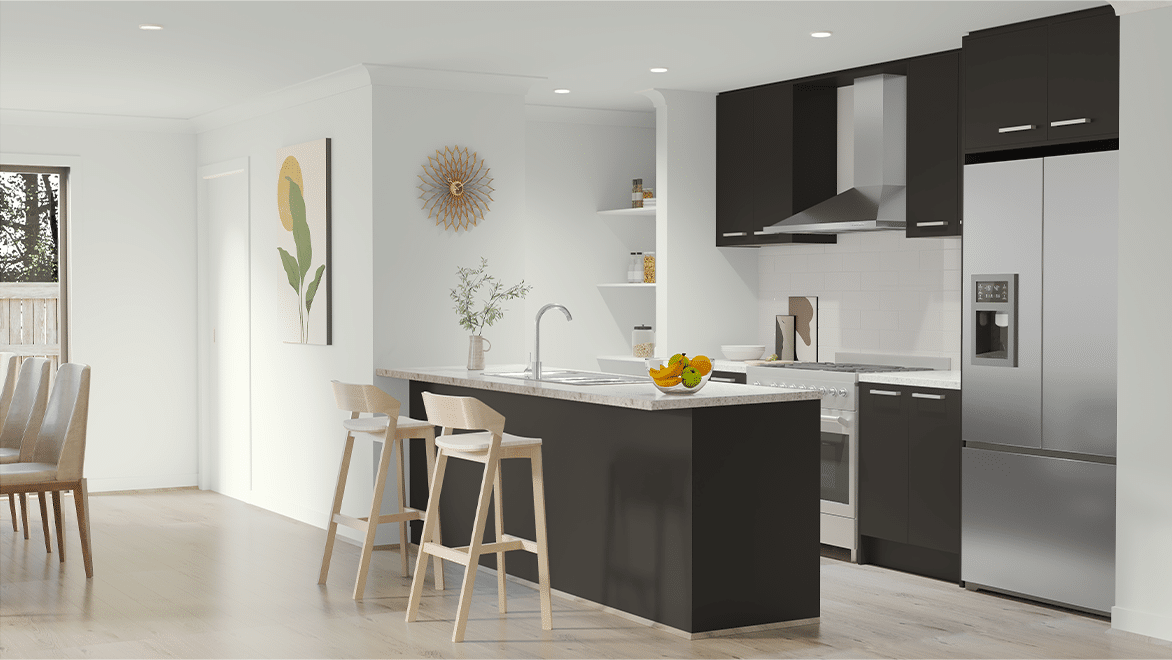

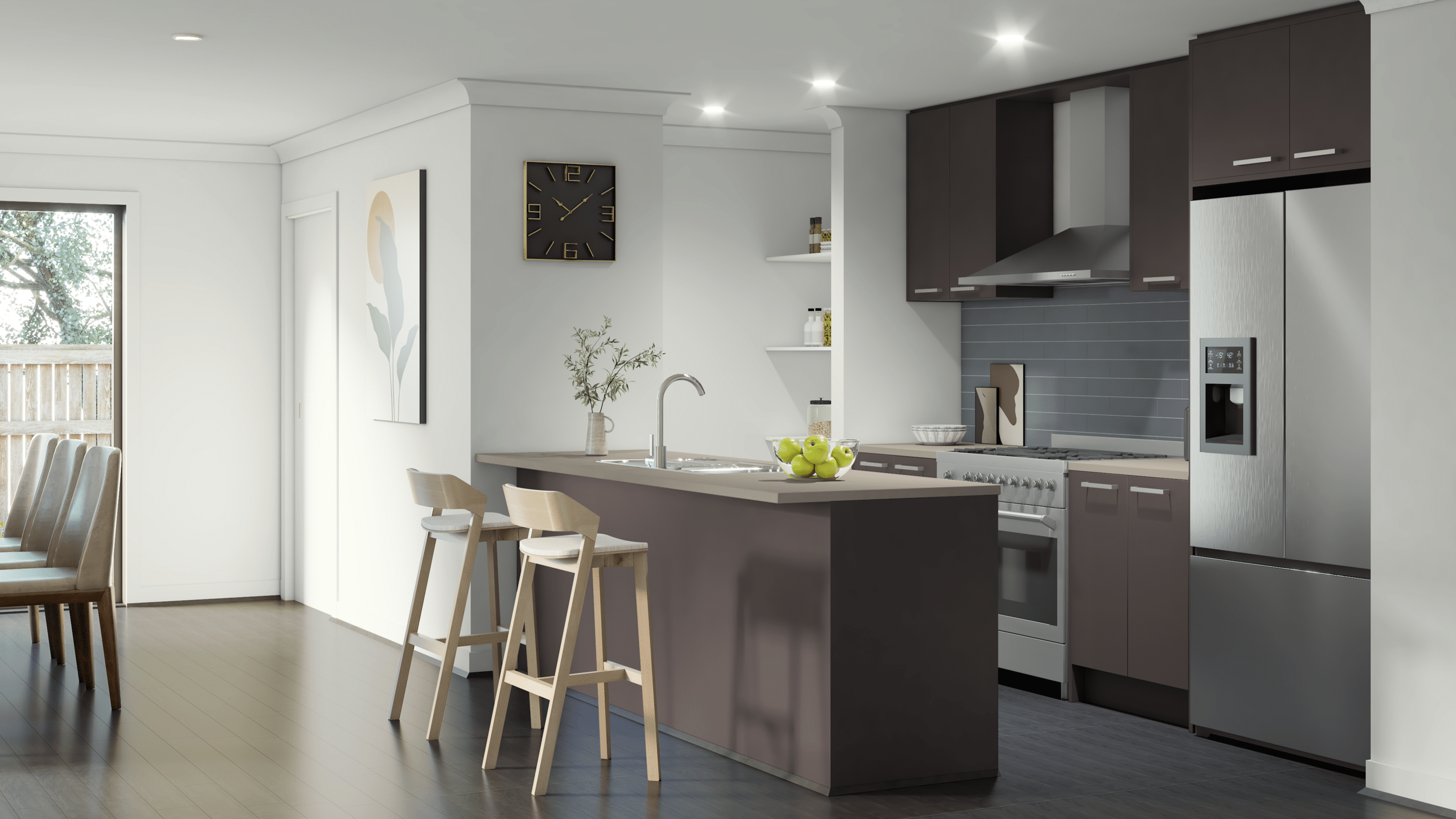

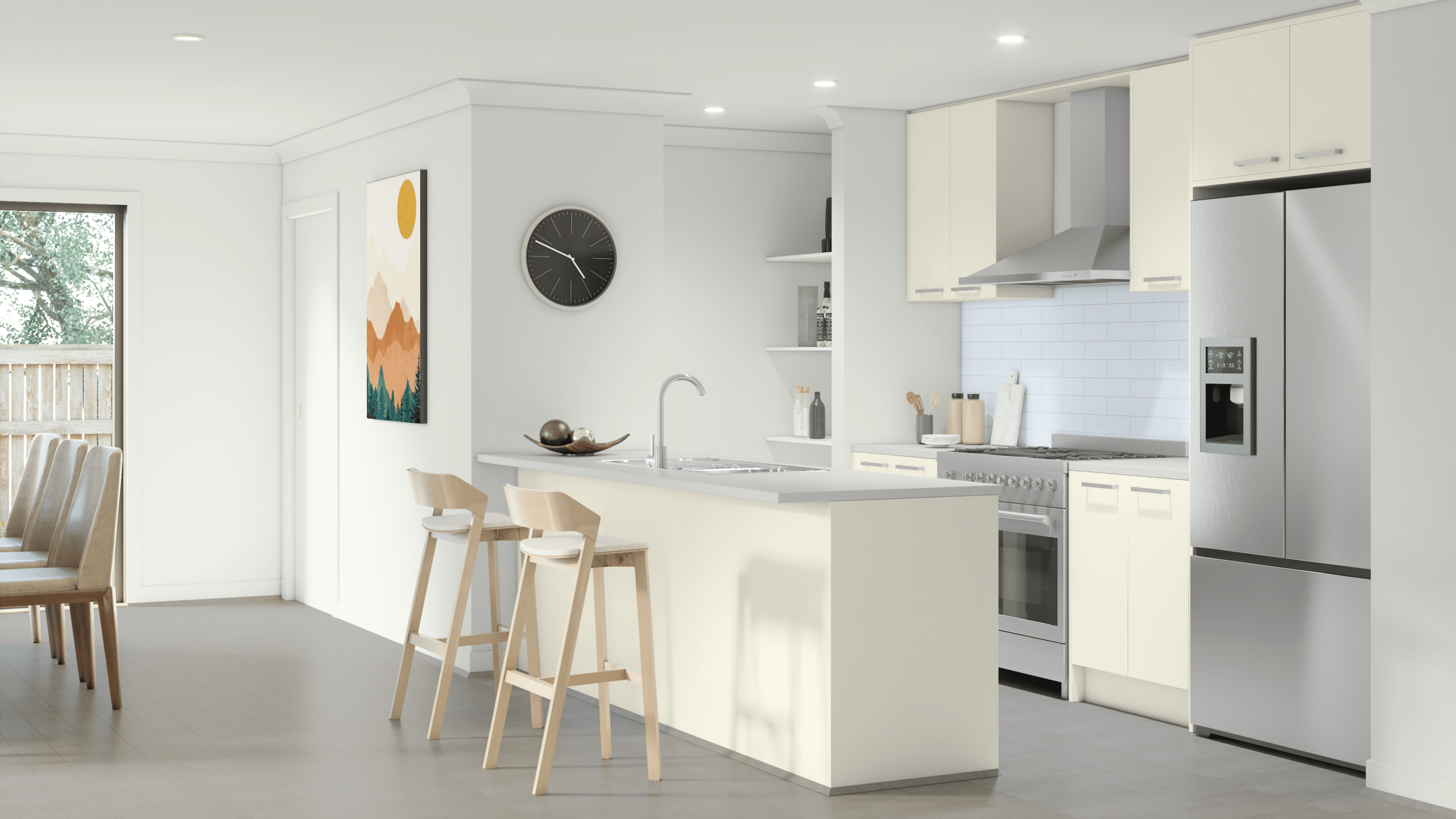

    Kitchen

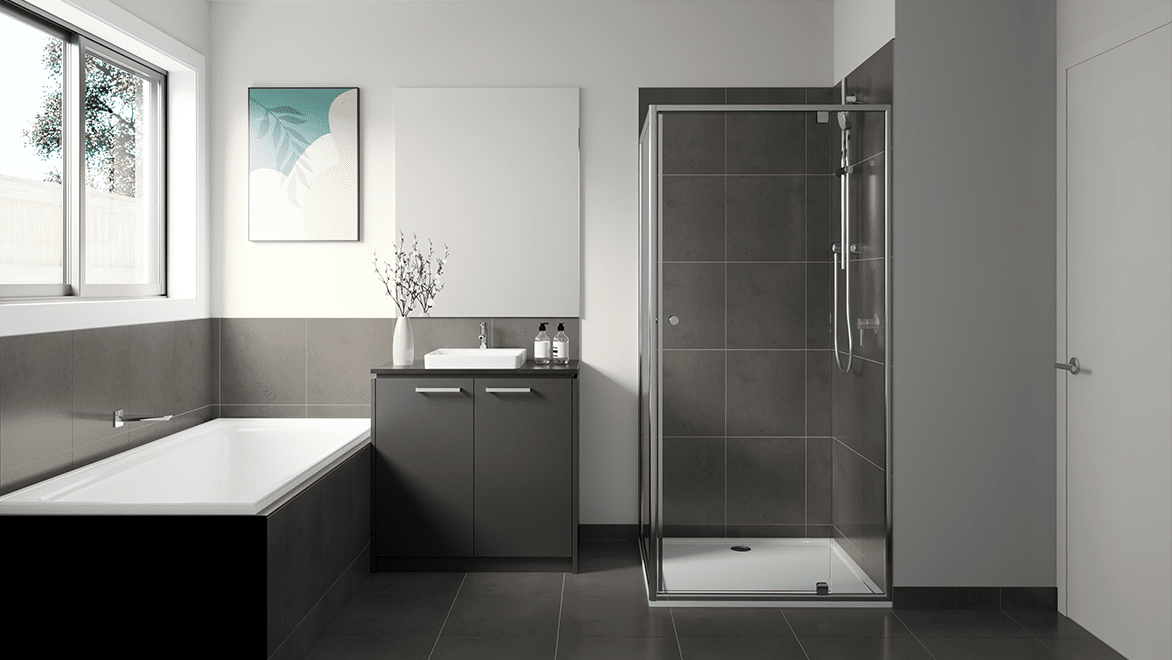

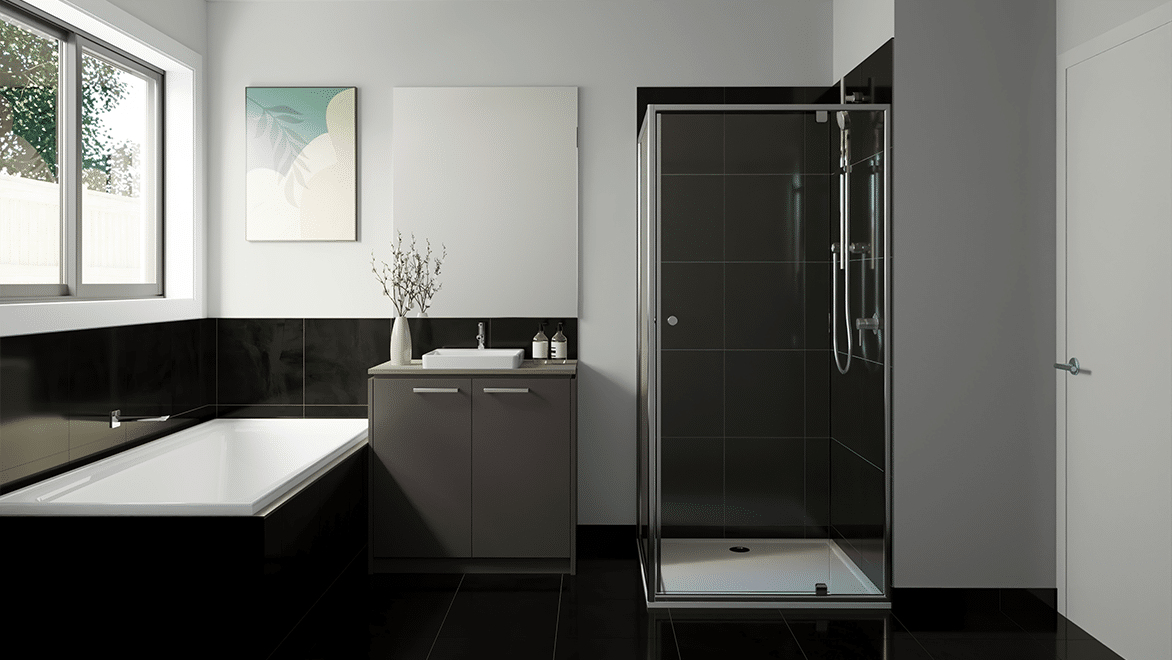

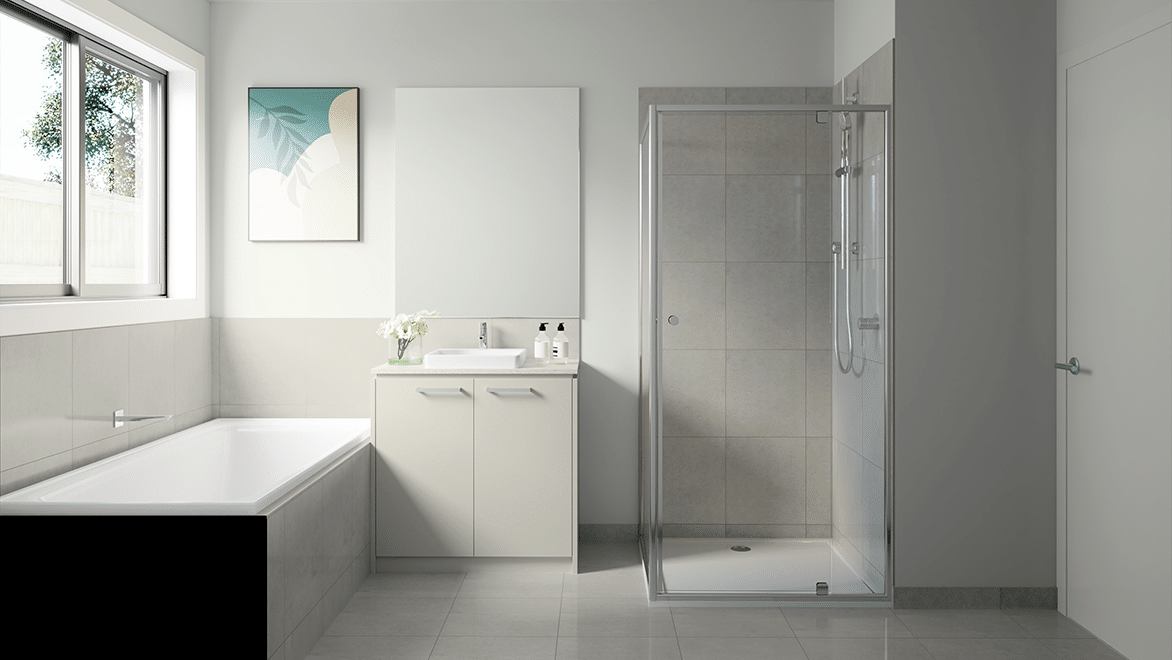

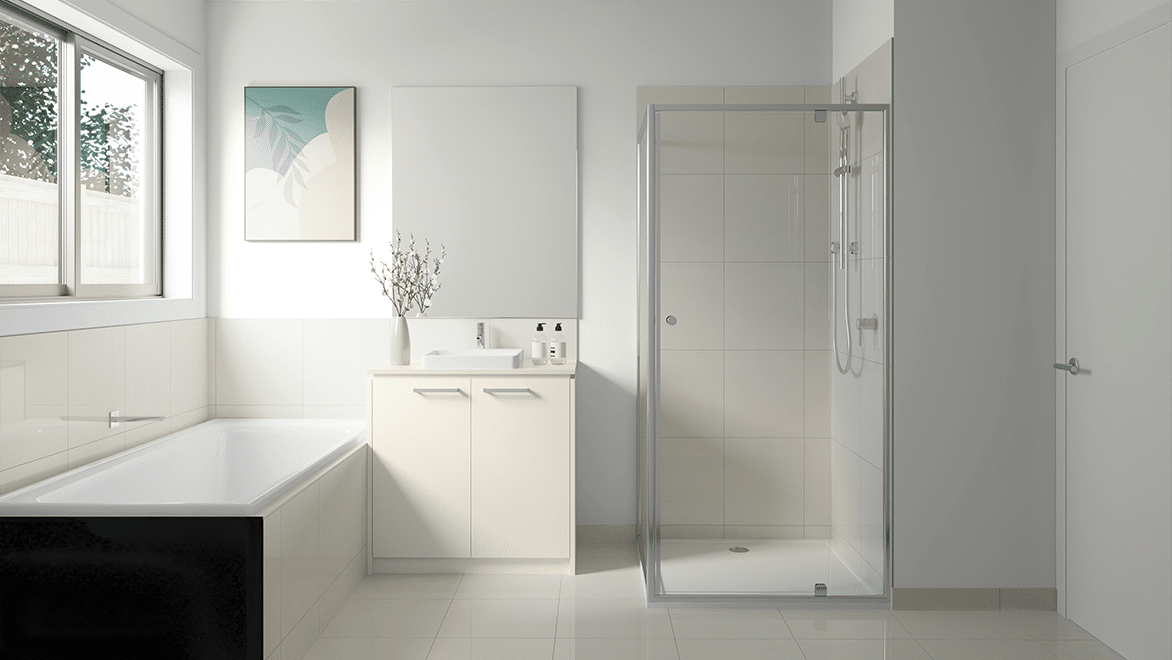

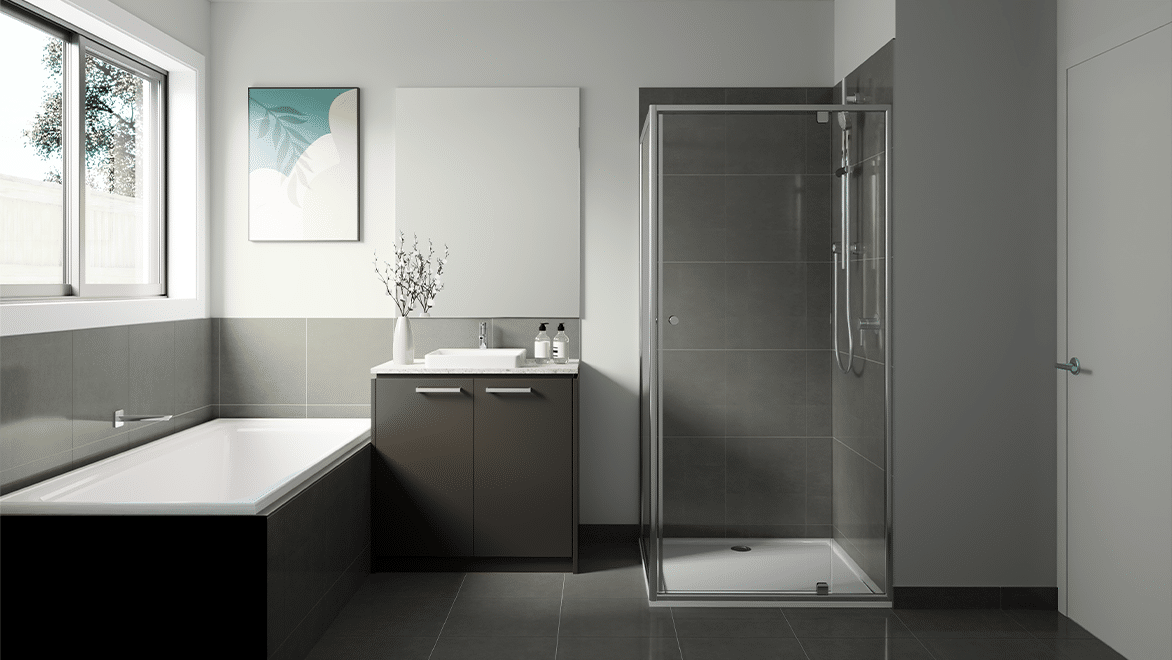

    Bathroom
